SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion

SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion
SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion
SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion
Informação Básica
Lugar de origem: porcelana
Marca: United Win
Número do modelo: SBY-650X4
Quantidade de ordem mínima: 1 conjunto
Preço: USD
Detalhes da embalagem: Caixa de madeira
Tempo de entrega: 3 meses
Termos de pagamento: T/T, L/C
Habilidade da fonte: 3sets/month
Melhor preço contacto
Nome: Máquina circular do tear Largura de trabalho, plano dobro: 60-750mm
Número de canelas pela máquina: 4 Densidade da trama: 10-24pcs/10cm
Entorte a alimentação: Motor Velocidade: 0-120rpm
Diâmetro interno da bobina: 38 mm Comprimento da bobina: 230mm
Número de fios de urdidura: 512pcs Avaliação normal do motor principal: 2.2 kW
Poder do motor do elevador: 22N poder do motor de enrolamento: motor de torque 10kgs
Potência total: 3 kW Garantia: 1 ano
Destacar:

Máquina de tear circular de quatro lançadores

,

Embalagem Máquina de tear circular

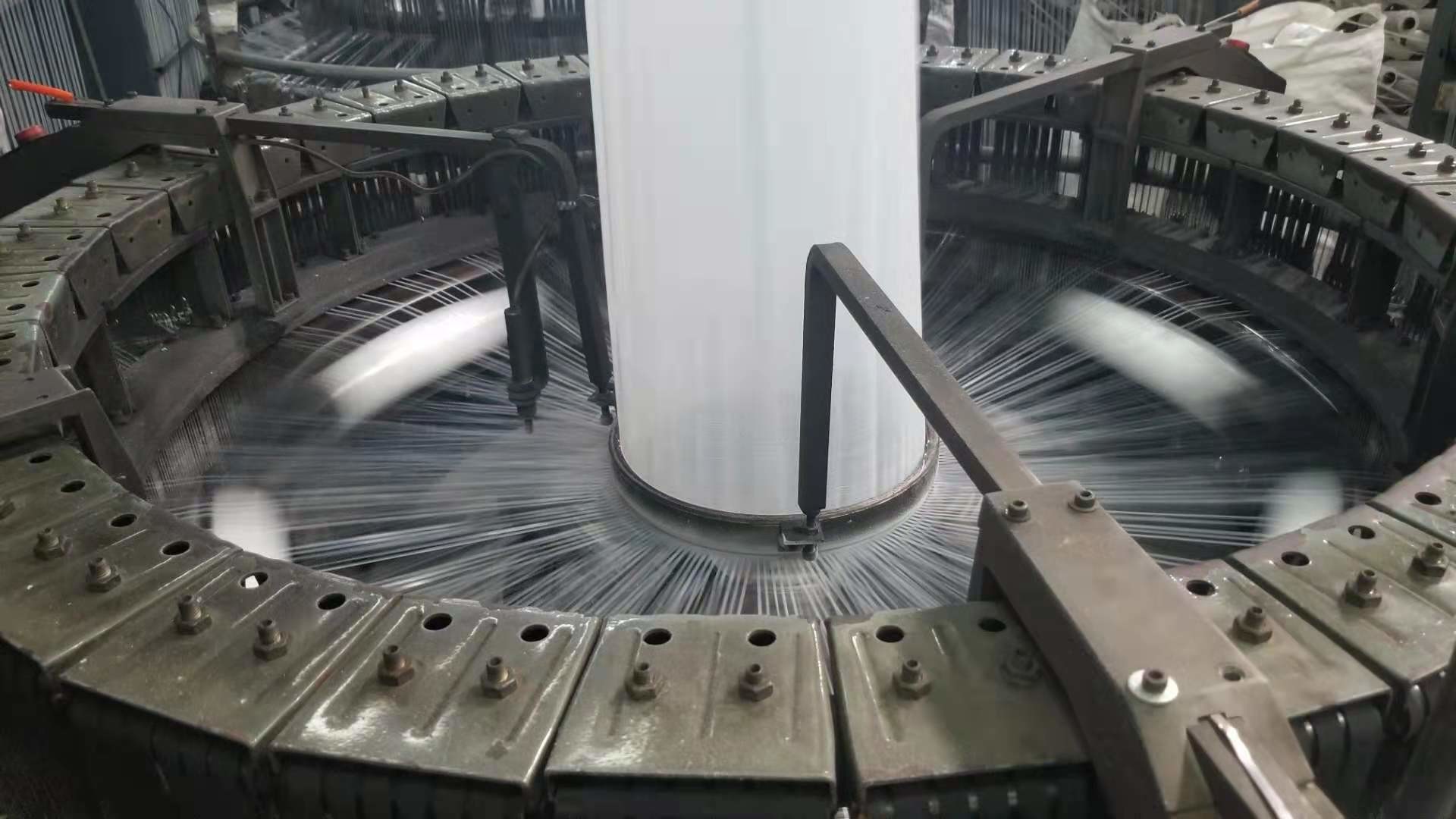

SBY-650X4  Four Shuttle Plastic Leno Mesh Bag Circular Loom Machine





Descripition:

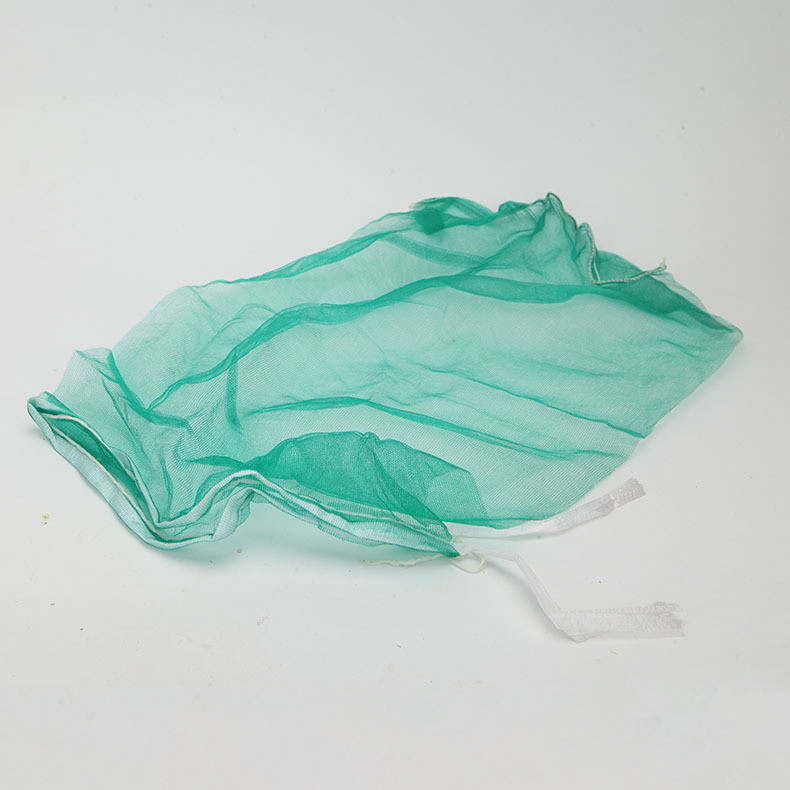

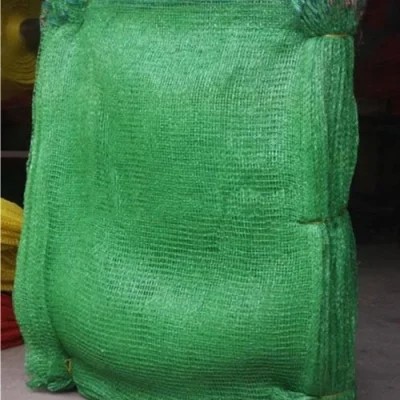

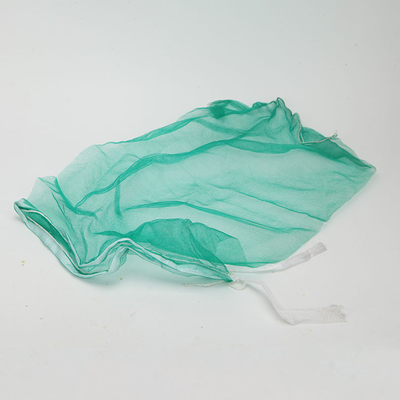

Mesh bag circular loom is mainly used to produce cylindrical mesh bags for packaging vegetables, fruits and other agricultural products. The suitable raw material is PE or PP. 100% recycled materials can be used also. Usually weft yarn is flat yarn(tape) and warp yarn can be monofilament or flat yarn.





Advantages:



1. The structure design of the whole machine is novel and reasonable, the maintenance is convenient.

2. High speed, low noise , low friction, energy saving , high efficiency.

3. Adopting the interweaving technology, the weft is not easy to loosen, and it is not easy to stretch after filling with fruits and vegetables.

4. The loom is controlled by Inverter, and it will automatically stop if the weft are finished or the warp, weft yarn is cut off, machine also equip with a meter counter.

5. Intelligent system is used for lifting and winding of fabric, automatic tracking and synchronization.





Specifications:



Working width,double flat 60-750mm
Number of shuttles per machine 4
weft density 10-24pcs/10cm
Speed 0-120RPM
Warp feeding Motor
Inner diameter of Bobbin 38mm
Bobbin length 230mm
Max. bobbin diameter 100mm
Number of Warp yarns 512pcs
Normal rating of main motor 2.2kw
lift motor power : 22N
winding motor power: 10kgs Torque motor
Total power 3Kw
Installed size (mm) 10500* 2400* 3200
weight 2T





Application:

SBY-650X4 Four Shuttle leno Bag Circular Loom Machine for Packaging potato onion 0

FAQ:



1. How long will your engineer reach our factory?

Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)



2. How many days will you finish installing?

We will finish installation and training within 15 days.



3. What should we charge for your engineer?

You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.



4. How long is your machine's warranty period?

All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.



5. How could you do if the parts broken within warranty?

We would express the free replacement parts during the warranty date



6. How could you do after one year warranty period?

We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.



7. How do we solve the machine problem after your engineer leaving?

Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time.

Our engineers will take a solution video according your description.
